Graco Husky 515 1/2" Air-Operated Double Diaphragm Pump - D5A211

1/2 Inch Positive Displacement Double Diaphragm Pump

The Husky 515 has a 1/2 inch (12.7 mm) connection and is available in polypropylene, acetal and PVDF

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Benefits of the Husky 515 Double Diaphragm Pump

• Center and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing

1/2 Inch Positive Displacement Double Diaphragm Pump

The Husky 515 has a 1/2 inch (12.7 mm) connection and is available in polypropylene, acetal and PVDF

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Features

• Fully-groundable acetal model
• Delivery up to 15 gpm (56.7 lpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance

Benefits

• Center and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing

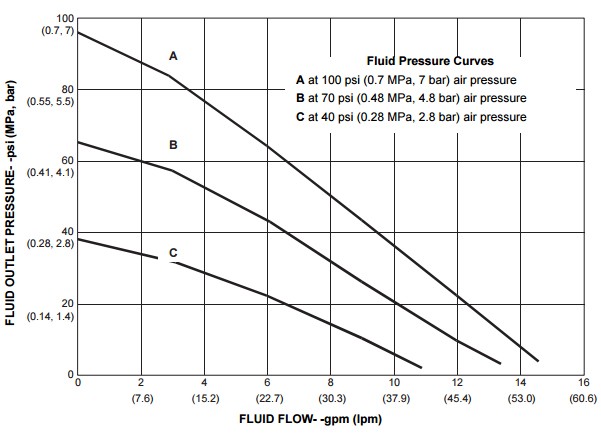

Performance

Overview
