Graco Husky 3300 3" Air-Operated Double Diaphragm Pump - 652046

SKU

652046

$3,810.77 $3,175.64

Ship to

Calculate Shipping Cost

Country

State/Province

Zip/Postal Code

Qty

Overview

Aluminium Fluid Section, Aluminium Standard Air Valve w/Buna Seals Centre Section, Geolast Seats, Geolast Balls, Geolast Diaphragms, Buna O-Rings

Description

The Husky 3300 has a 3 inch (76.2 mm) connection and is available in aluminum, polypropylene and stainless steel.

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

Expanded material offering to handle numerous applications
Flow rates up to 300 gpm (1,135 lpm)
Modular stall-resistant air valve design
Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
Heavy-duty construction
Faster change over with spring loaded pilot valves

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Expanded material offering to handle endless applications
Offered in ATEX configuration

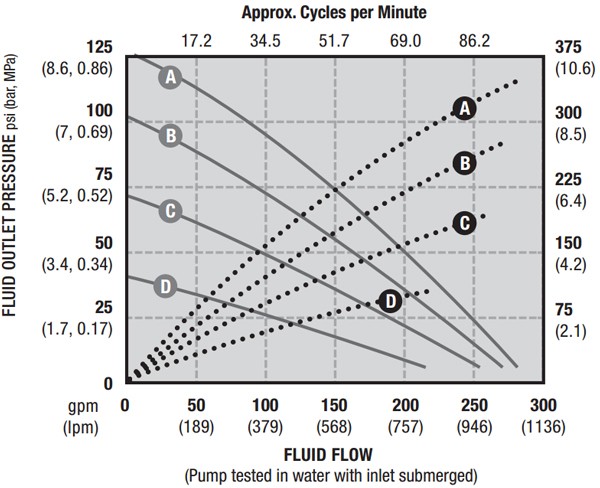

Maximum Fluid Flow:	300 gpm (1135 lpm)
Maximum Fluid Discharge Pressure:	100 psi (7 bars, 0.7 MPa)
Maximum Size Pumpable Solids:	1/2 in (13 mm)
Fluid Displacement Per Cycle:	2.9 g (11 litres)

More Information
Max. Flow Rate (l/min)	1,059
Max. Input Pressure (psi)	100
Max. Output Pressure (psi)	100
Fluid to Air Ratio	1:1
Air Inlet Size	3/4" NPT(F)
Pump Inlet/ Outlet Size	3" Flange (Centre)
Max. Pump Speed	97 cpm
Fluid Section Material	Aluminium
Centre Section Material	Aluminium Standard Air Valve w/Buna Seals
Porting	Aluminium Centre Flange ANSI/DIN & NPT
Seats	Geolast
Balls	Geolast
Diaphragms	Geolast
Manifold O-Rings	Buna
Certification Required	ATEX
